KEYSTONE SNAP-IN MODULE
KEYSTONE SNAP-IN MODULE
Inquiry
The Series I keystone snap-in modules are designed for use with series I wall plates. The "H.D. version" modules are particularly suitable for DJAS0400, DJAS0600 and high-density blank panels.
Ordering Information
“XX” = color, white (WH), ivory (IV)
Note: Fig. 26/27/32 these products only worked "one orientation".
| Part # | Description |
| ISKMSS000-XX | 2 Wire DC / Speaker Keystone Snap-In |
| ISKJBJ00G-XX | Banana binding post, gold plating, H.D. version |
| ISKJBJ20G-XX | Banana binding post, gold plating, H.D. version |
| ISKJF000N-XX | F female to female adapter, H.D. version |
| ISKJF001G-XX | F female to female 3GHZ adapter, H.D. version |
| ISKJFR00N-XX | F female to RCA female adapter, H.D. version |
| ISKPJ000N-XX | 3.5Φ stereo connector |
| ISKRF000N-XX | RCA female to F female adapter, H.D. version |
| ISKMBNC0N-XX | BNC female to female adapter, H.D. version |
| ISKJRCAFN-XX | RCA female to female adapter, H.D. version |
| ISKMMD00N-XX | Mini Din 4-pin F/F connector, H.D. version |
| ISKMPAL0N-XX | PAL adapter, H.D. version |
| ISKST000M-XX | ST multi-mode adapter, H.D. version |
| ISKMT0000-XX | MT-RJ multi-mode adapter |
| ISKMPJ00N-XX | Phone Jack Snap-in module |
| ISKMXX000-XX | Blank module, H.D. version |
| ISKM35000-XX | 3.5mm mono socket to terminal block, H.D. version |
| ISKM35S00-XX | 3.5mm stereo socket to terminal block, H.D. version |
| ISKMSGS0S-XX | SC single-mode adapter, H.D. version |
| ISKMLGS0S-XX | LC single-mode adapter, H.D. version |
| ISKMAPLCS-XX | LC duplex, S/M APC with shutter |
| ISKMAPSCS-XX | SC simplex, S/M APC with shutter |
| ISKMMPO00-XX | MPO Adapter, HD version (non-flange) |
| ISKMMDI0N-XX | Mini Din 4-pin to 110 IDC, H.D. version |
| ISKMRCI0N-XX | RCA jack to 110 IDC, H.D. version |
| ISKMUSB10-XX | USB 2.0 (A) to (B) module, H.D. version |
| ISKMUSB20-XX | USB 2.0 (A) to (A) module, H.D. version L=35.5mm |
| ISKMUSB40-XX | USB 3.0 (A) to (B) module, H.D. version |
| ISKMUSB50-XX | USB 3.0 (A) to (A) module, H.D. version L=35.5mm |
| ISKMUSB60-XX | USB 3.0 (A) to (A) module, 90 degree |
| ISKMUSB70-XX | Keystone Snap-in Module, USB Type C 3.1 F/F |
| ISKMUSB71-XX | Keystone Snap-in Module, USB Type C 3.1 Gen II F/F |

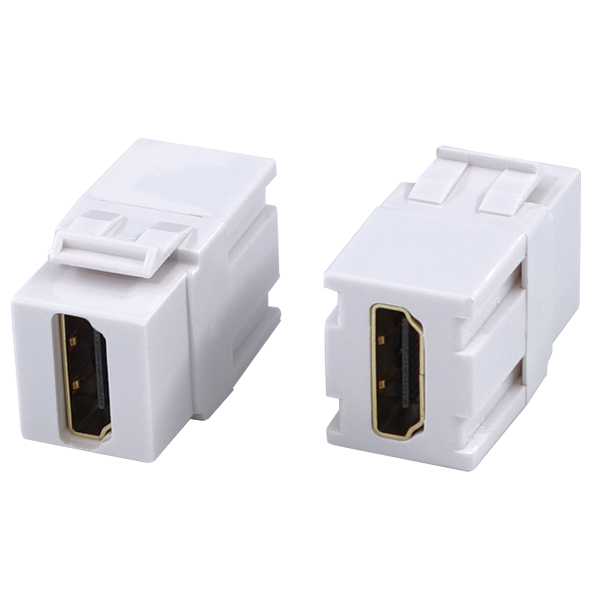

| ISKMHDMI0-XX | HDMI female to female adapter, H.D. version |

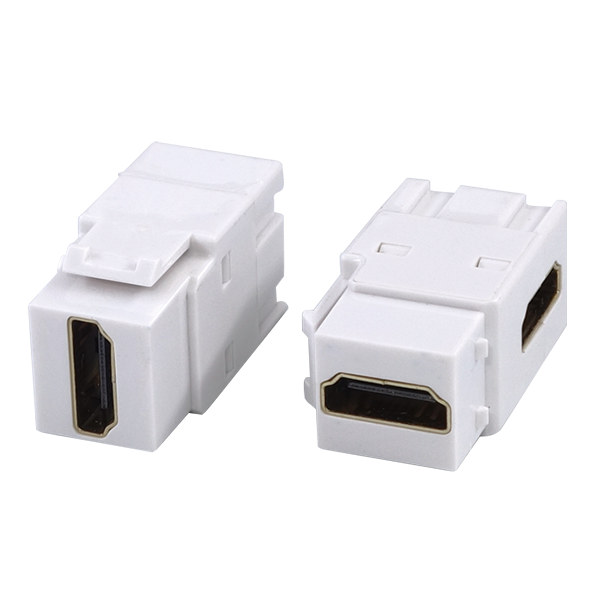

| ISKMHDMA0-XX | HDMI female to female adapter, 90 degree |
| ISKMUSB80-XX | Keystone USB 3.0 A/A with fly lead |
| ISKMUSB81-XX | Keystone USB 3.0 A/B with fly lead |
| ISKMUSB90-XX | Keystone USB Type C 3.1 F/F with fly lead |
| ISKMUSB91-XX | Keystone USB Type C 3.1 F/M with fly lead |

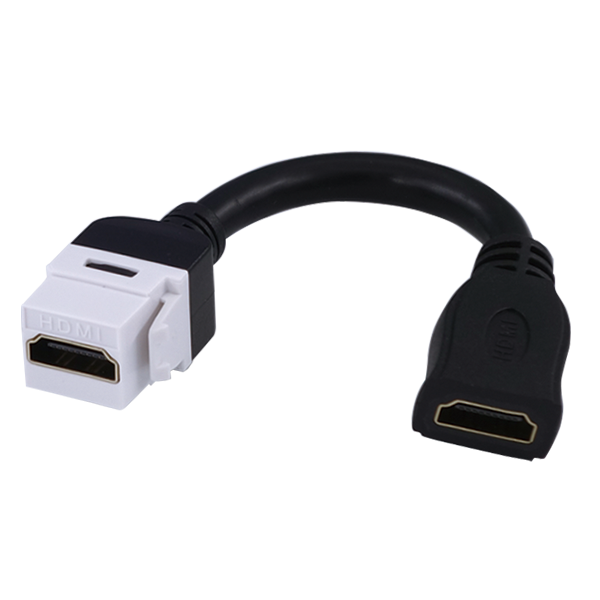

| ISKMHDMI1-XX | Keystone HDMI F/F with fly lead |
| ISKMHAFF0-XX | HDMI keystone cable 110° AF / 180° AF, 0.5m, White |
| ISKMHAFM0-XX | HDMI keystone cable 110° AF / 180° AM, 0.5m, White |
| ISKMHAFM3-XX | HDMI keystone cable 110° AF / 180° AM, 3m, White |
| ISKMUAFM0-XX | USB3.2 keystone cable 110° AF / 180° AM, 0.5m, White |
| ISKMUAFM1-XX | USB3.2 keystone cable 110° AF / 180° AM, 1.8m, White |
| ISKMUCFM0-XX | USB3.2 keystone cable 110° CF / 180° CM, 0.5m, White |
| ISKMDISA0-XX | Mini Display to Display, 90 degree |
| ISKMDIS00-XX | Mini Display to Mini Display, 180 degree |
| ISKMDIS10-XX | Mini Display to Display, 180 degree |
| ISKMDIS20-XX | Mini Display M to Mini Display F Cable |
| ISKMDIS30-XX | Mini Display F to Display F Cable |
Note: Fig. 26/27/32 these products only worked "one orientation".
