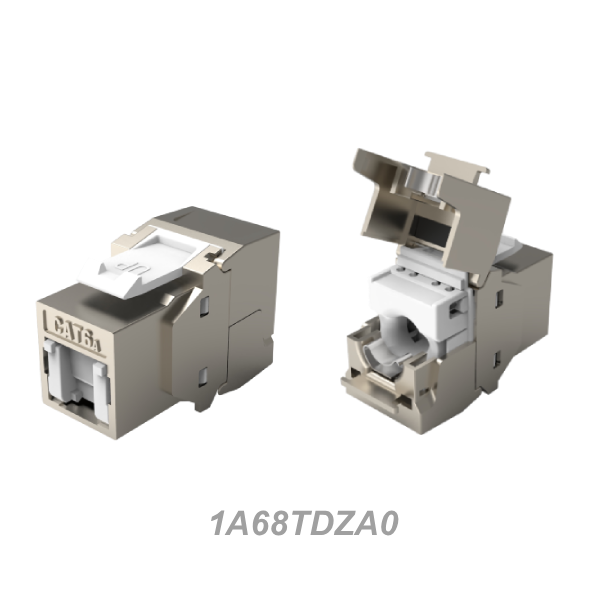

CAT.6A SHIELDED KEYSTONE JACK

Inquiry

EmCom’s Category 6A shielded keystone jack supports the 10/100/1G BASE-T Ethernet, as well as advanced new 10G BASE-T Ethernet. The shielded jack with industrial leading transmission performance and provide exceptional level of headroom, meets and exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 2nd edition Category 6A standards. Zinc-alloy metal shell balances/eliminates the Alien crosstalk while the data is at high speed transmission. Narrow width design fits 1U 24-port empty panel for most efficient use of rack space.

Part # Description
1A68TPZA0 RJ45, 8-Conductor Cat.6A, Tool-free, Shielded, 180 degree, H.D. version
1A68IPZA0 RJ45, 8-Conductor Cat.6A, 110 IDC, Shielded, 180 degree, H.D. version
5A68TPZA0 RJ45, 8-Conductor Cat.6A, Tool-free, Shielded, 180 degree, H.D. version
6A68TPZA0 RJ45, 8-Conductor Cat.6A, Tool-free, Shielded, 180 degree, H.D. version
7A68TPZA0 RJ45, 8-Conductor Cat.6A, Tool-free, Shielded, 180 degree, H.D. version
1B68TPZA0 RJ45, 8-Conductor Cat.6A, Tool-free, Shielded, 180 degree, H.D. version, fits 0.5U panel
7B68TPZA0 RJ45, 8-Conductor Cat.6A, Tool-free, Shielded, 180 degree, H.D. version, fits 0.5U panel
0T68TPZA0 RJ45, 8-Conductor Cat.6A, Tool-free, Shielded, 90 degree, H.D. version, fits 0.5U panel
1T68TPZA0 RJ45, 8-Conductor Cat.6A, Tool-free, Shielded, 90 degree, H.D. version, L=34.5mm, fits 0.5U panel
  • Zinc-alloy metal shell
  • Tool-free, no additional tool required for termination
  • Contacts are phosphor bronze plated with 50 micro inches hard gold
  • Dual T568A & T568B wiring
  • Polycarbonate 94V0 rated
  • UL Listed
  • Force EC Cat.8/Class I Channel certified
  • 4PPoE compliant in accordance with IEEE802.bt Type 4
